Rosehill TPV® Specification Guide
Advanced surface solutions for play, sport and leisure.
Specifying a wet-pour surface means defending the decision long after installation. This guide brings the material properties, test standards, UV performance data, colour range and specification wording for Rosehill TPV together in one document, so architects, consultants and contractors can specify with confidence.
What Is Inside the Guide
- Material properties and the test standards behind them
- Rosehill TPV compared with premium EU EPDM
- UV stability results after accelerated weathering
- Whole-life cost comparison over 10 years
- A real-world case study from Tsuen Wan Plaza, Hong Kong
- Sustainability and compliance information
- The full 21-colour granule range
- A ready-to-use specification clause
- Installations across climates and company background
Key Properties at a Glance
| Property | Result | Test Standard |
|---|---|---|
| Density | 1.55 ± 0.05 g/cm³ | BS ISO 2781 |
| Hardness | 70 ± 5 Shore A | BS ISO 7619-1 |
| Elongation at break | 400% or more | BS ISO 37 |
| Composite tensile strength | 0.70 MPa or more (with 18% PU binder) | EN 12230:2003 |
| UV resistance | Grade 1 or better after 9600 kJ UVA | EN 14836 / EN 20105-A02 |
| Toy safety (heavy metals) | Tested to standard | EN 71-3:2019 |
Granule sizes: 1 to 4 mm standard, 0.5 to 2 mm optional.
Recommended binder: Moisture-curing polyurethane (PU).
Why Specify Rosehill TPV Instead of EPDM
EPDM is the default in many wet-pour specifications, but it is not the only option, and in hot, high-UV climates it is often not the best one. Rosehill TPV is a thermoplastic vulcanisate granule, a different compound with a different performance profile.
Colour that lasts.
In accelerated UV testing, Rosehill TPV scored Greyscale 5, against 3 to 4 for premium EU EPDM.
Non-porous.
Water does not penetrate the granule, which helps protect the binder bond.
No premium binder needed to hold colour.
The guide explains how this affects installed cost.
Consistent elasticity.
Impact-absorbing properties are designed to remain stable over the life of the surface.
UV Stability You Can Verify
Colour retention is often described, rarely evidenced. The guide sets out the test method, the exposure level and the results, so the claim can be checked rather than taken on trust.
After 9600 kJ of UVA exposure, Rosehill TPV recorded a change of Grade 1 or less, tested to EN 14836 and assessed to EN 20105-A02. Against a premium EU EPDM, it scored Greyscale 5 compared with 3 to 4.
Whole-Life Performance
A lower purchase price does not always mean a lower cost. The guide includes a 10-year cost comparison on a 100 m² area, looking at installation, maintenance and replacement. According to the guide, specifying Rosehill TPV can reduce whole-life cost by up to 20%.
For asset owners and consultants, that gives a clear basis for comparing options beyond the initial quotation.

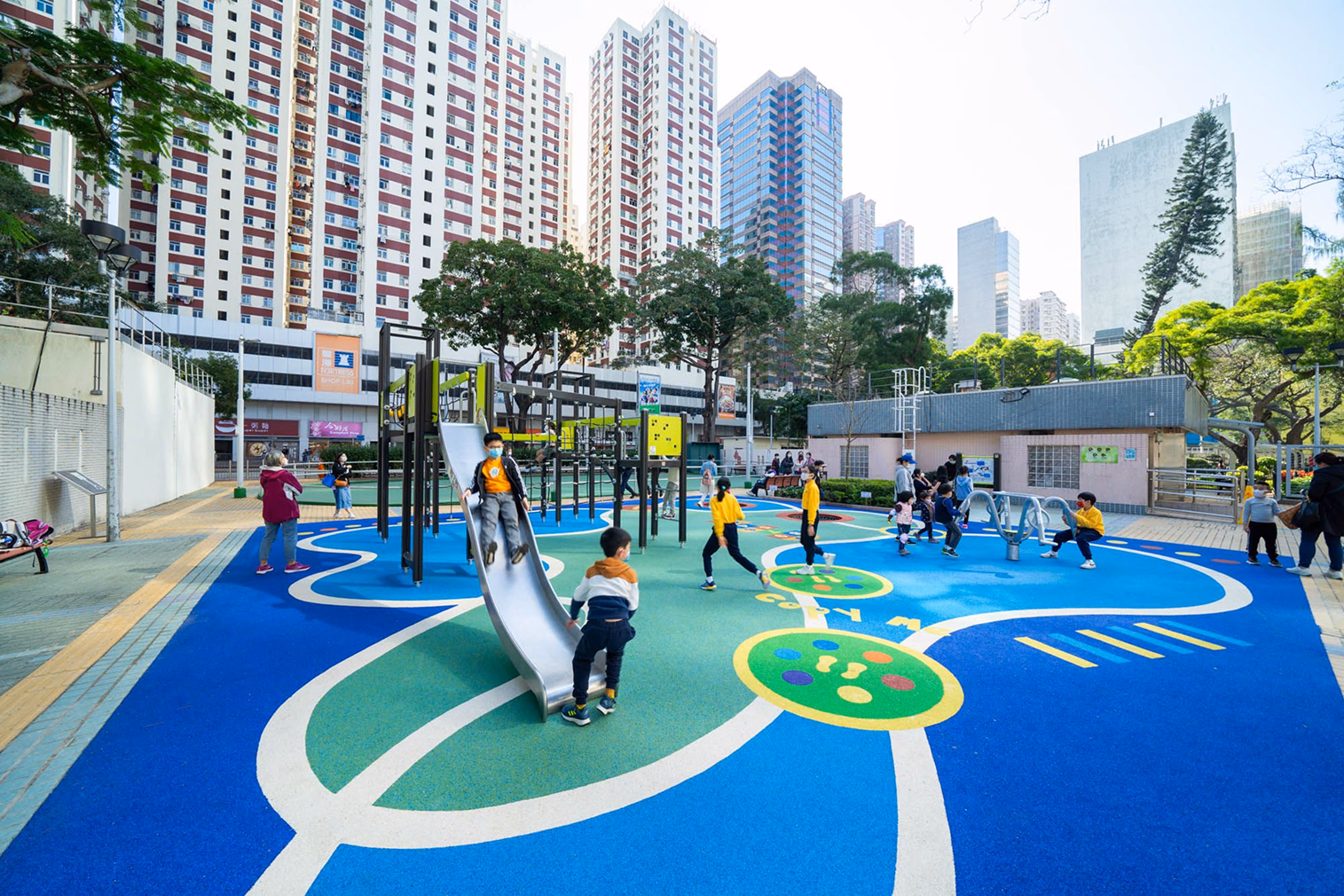

Real-World Proof: Tsuen Wan Plaza, Hong Kong
At Tsuen Wan Plaza in Hong Kong, an EPDM surface installed in 2021 was replaced with Rosehill TPV in 2022. The guide documents the case, including what prompted the change and how the two materials compared in the same conditions.
It is a practical example of why the material choice matters in a busy, high-exposure public setting.
Sustainability and Compliance
- Manufactured under ISO 9001 certification
- Non-toxic and non-allergenic
- Free from sulphur, heavy metals such as zinc, phthalate plasticisers and clay fillers
- Solvent-free MDI-based Flexilon binders
- Toy safety tested to EN 71-3:2019
- Supports a long service life, reducing replacement and waste over time
Standards referenced
- EN 1177
- EN 71-3
- REACH
- ASTM D573 / ISO 4892
21 Colours
Rosehill TPV is available in 21 granule colours, each with its own RH code. Colours can be blended to create custom palettes, patterns and branded designs, and because the granules are UV stable, the design specified on day one is the design that stays visible. The full colour range is included in the guide.
Specification Clause
The guide includes ready-to-use specification wording, classified under Q26 Special Surfacing / Play Surfacing, so it can be dropped straight into a tender document.
Rosehill TPV® granules shall be a thermoplastic vulcanisate with a density of 1.55 ± 0.05 g/cm³ (BS ISO 2781) and a hardness of 70 ± 5 Shore A (BS ISO 7619-1), with elongation at break of not less than 400% (BS ISO 37), bound with a moisture-curing polyurethane binder to achieve a composite tensile strength of not less than 0.70 MPa (EN 12230:2003). UV resistance shall be Grade 1 or better after 9600 kJ UVA exposure (EN 14836 / EN 20105-A02).

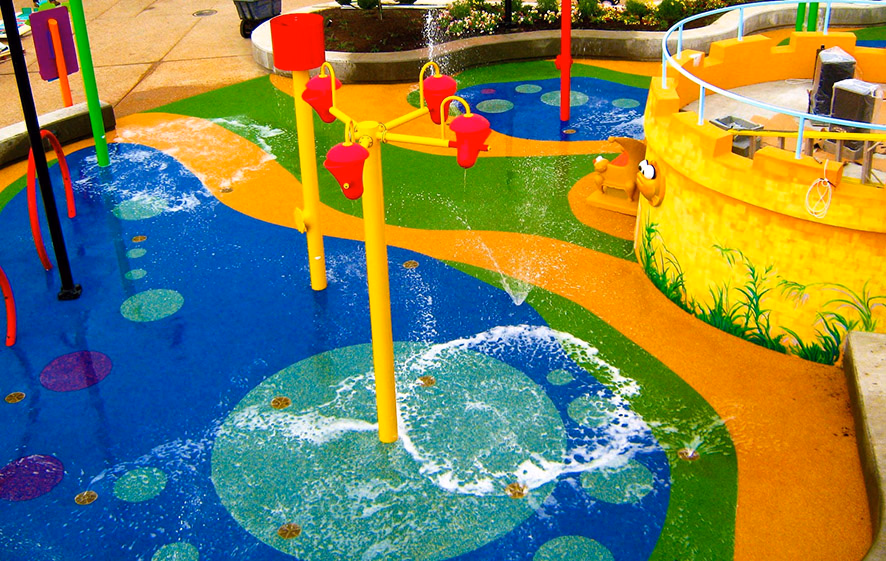

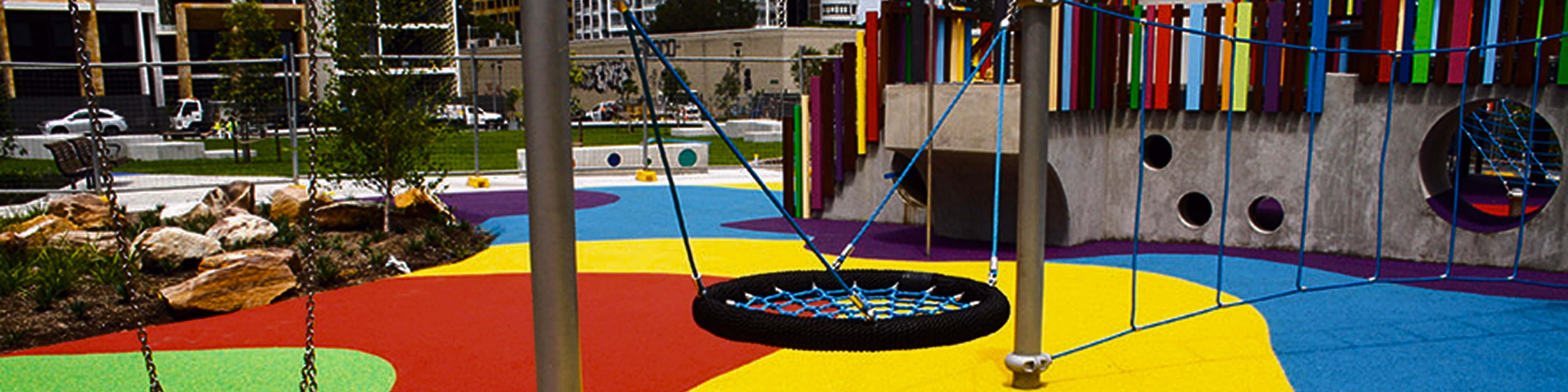

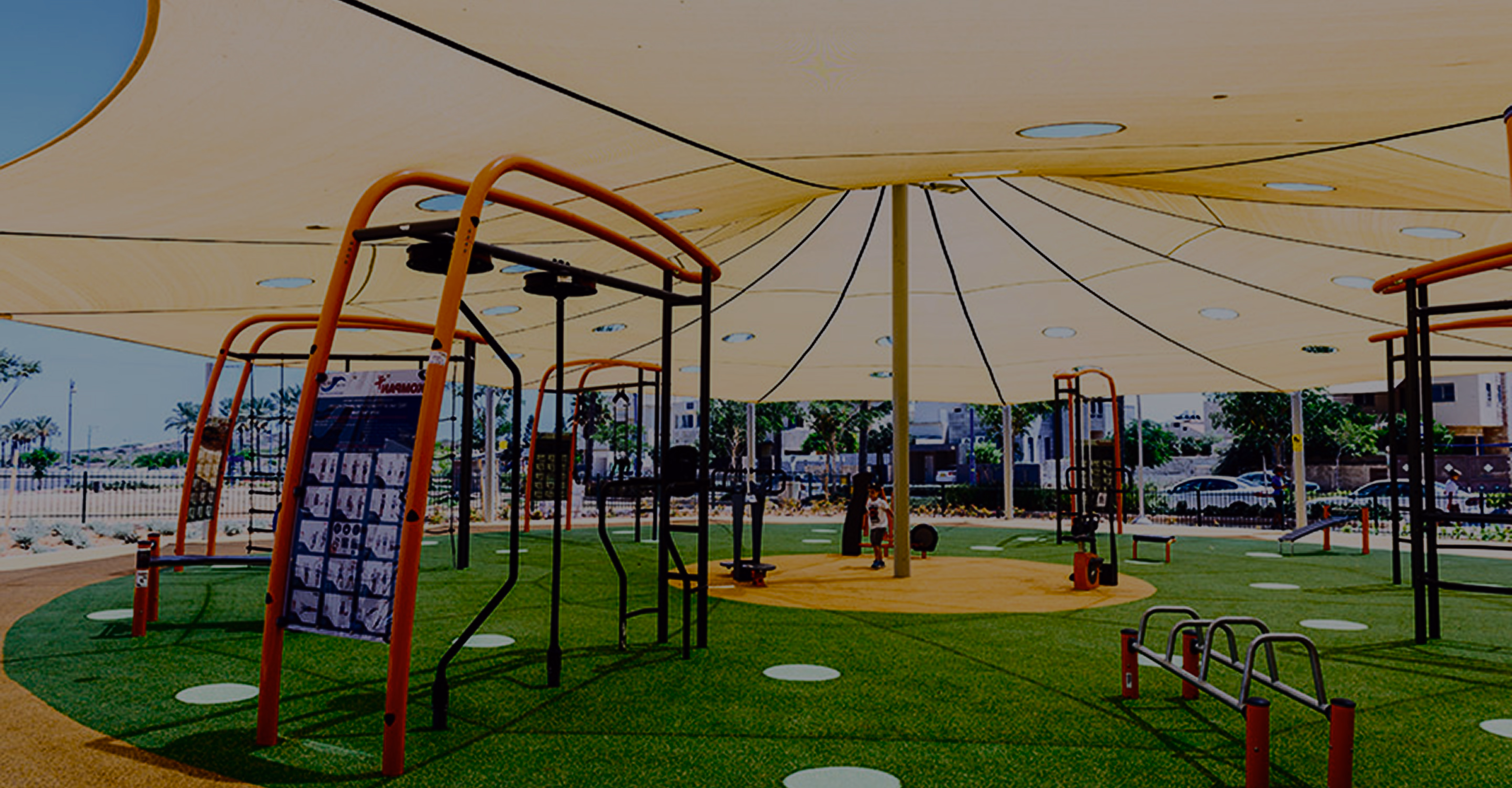

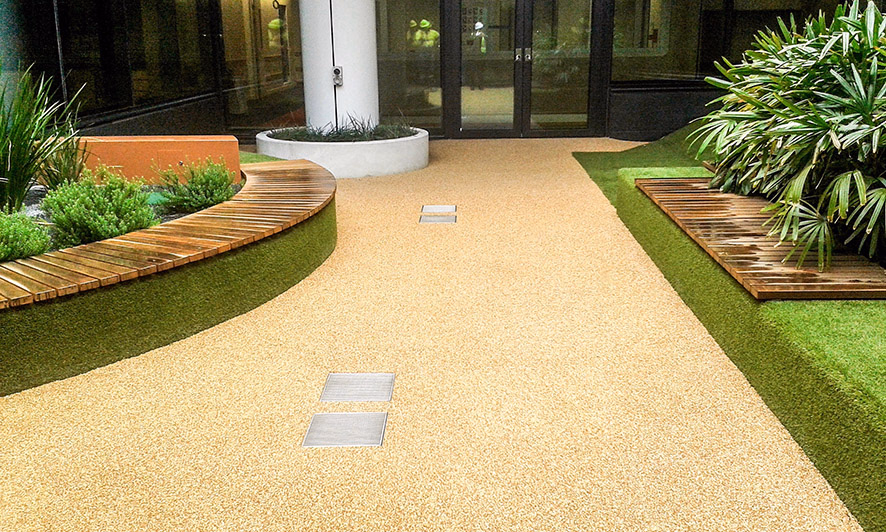

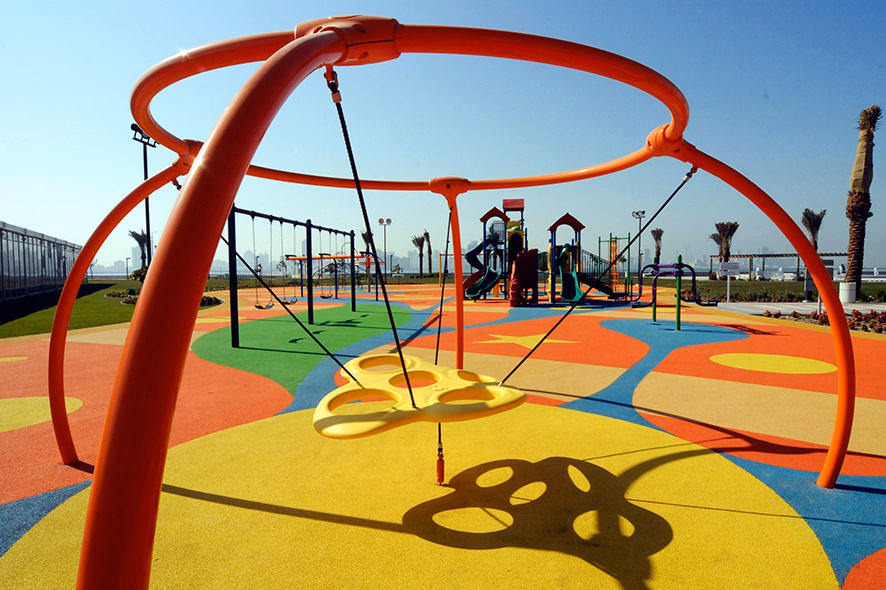

Proven Across Climates
Rosehill TPV has been installed in Chile, the UK, New Zealand, Hong Kong, the UAE and at Disneyland California. From sustained Gulf heat to cooler, wetter conditions, the compound is built to perform across them, with a thermal range of minus 40°C to plus 70°C.
- Chile
- UK
- New Zealand
- Hong Kong
- UAE
- Disneyland California
About Rosehill Polymers
Rosehill Polymers has been developing polymer solutions since 1988. Rosehill TPV is made in the UK and supports play, sport and leisure surfacing projects worldwide.
Specify Rosehill TPV With Elaf Rubber
Elaf Rubber is the authorised distributor of Rosehill TPV for the UAE, Saudi Arabia and the wider GCC. Our team can provide technical data sheets, colour samples and guidance on the right granule and binder combination for your project.
Request Samples or Technical SupportFrequently Asked Questions (FAQs)
The guide covers material properties and test standards, UV performance, a 10-year cost comparison, the Tsuen Wan Plaza case study, sustainability and compliance information, the 21-colour range and a ready-to-use specification clause.
In accelerated UV testing to EN 14836, Rosehill TPV scored Greyscale 5, compared with 3 to 4 for premium EU EPDM. The full test details are in the guide.
Rosehill TPV is available through Elaf Rubber, the authorised distributor for the UAE, Saudi Arabia and the wider GCC. Contact the team for samples, documentation and project guidance.
